Wire Grid Resistors


Construction:


In these type of resistors fecral wires are used. Wire is formed into grid by bending wire in zig -zag form. Multiple grids are assembled as a bank and then fitted in an enclosure. These resistors are most suitable where high wattage and high current is required.

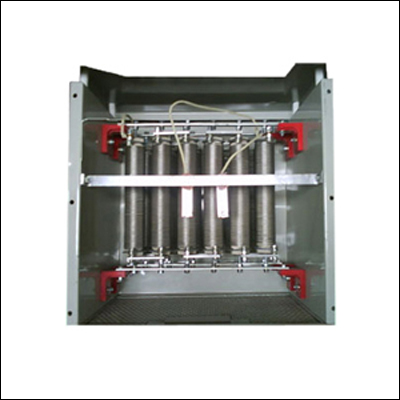

  Wire Grid Resistors

  Applications:

Loading Resistors
Dynamic Braking Resistors
Starting Resistors
Neutral Grounding Resistors
