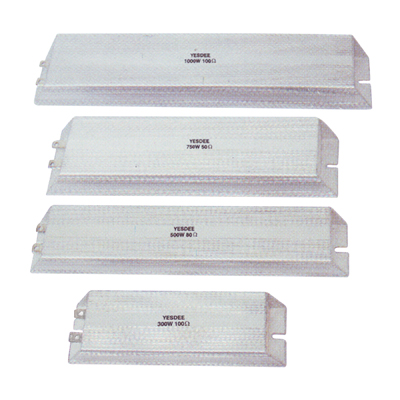

Professional Grade Wire Wound Resistors Type = YAH = Aluminium Housed (D.B.R.) |
|
|
Special Features:
- Small Size Low Price
- High Power and Excellent Load Life Stability
- Strongly Resistant to Moisture, Solvent and Insulation
- Excellent Short Time Overload
- Both Standard Winding and Non-Inductive Type Winding are Available
- High-Surge Resistance Items are also Available
|
|
|
Electrical Specifications |
Operation Range of Temperature |
Insulation Resistance |
Dielectric Strength |
Temperature
Co-efficent |
Ohmic Value Range |
-500c to + 2500c |
20MΩ MIN |
AC 2000V |
200 PPM/0c |
1Ω to 15KΩ |
|
|
|
|
|
|
|
|

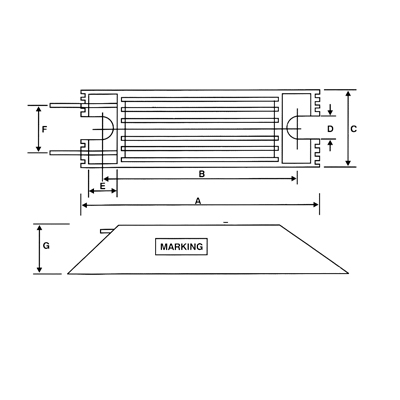

Physical Dimension in M.M. |
Type |
Watts |
Size L |
IN W |
MM H |
Value |
YAH |
60 W |
95 |
38 |
25 |
1Ω to 5KΩ |
YAH |
80 W |
130 |
38 |
25 |
1Ω to 5KΩ |
YAH |
100 W |
165 |
38 |
25 |
1Ω to 5KΩ |
YAH |
120 W |
190 |
38 |
25 |
1Ω to 5KΩ |
YAH |
150 W |
215 |
38 |
25 |
1Ω to 5KΩ |
YAH |
200 W |
165 |
65 |
38 |
1Ω to 5KΩ |
YAH |
300 W |
215 |
65 |
38 |
1Ω to 5KΩ |
YAH |
400 W |
265 |
65 |
38 |
1Ω to 5KΩ |
YAH |
500 W |
210 |
80 |
40 |
1Ω to 5KΩ |
YAH |
750 W |
265 |
80 |
40 |
1Ω to 5KΩ |
YAH |
1000 W |
330 |
80 |
40 |
1Ω to 5KΩ |
YAH |
1200 W |
400 |
80 |
40 |
1Ω to 5KΩ |
YAH |
1500 W |
495 |
80 |
40 |
1Ω to 5KΩ |
YAH |
2000 W |
400 |
60 |
90 |
1Ω to 5KΩ |
YAH |
2500 W |
495 |
60 |
90 |
1Ω to 5KΩ |
YAH |
3000 W |
540 |
60 |
90 |
1Ω to 5KΩ |
YAH |
4000 W |
600 |
60 |
90 |
1Ω to 5KΩ |
|
|
|
|
|
